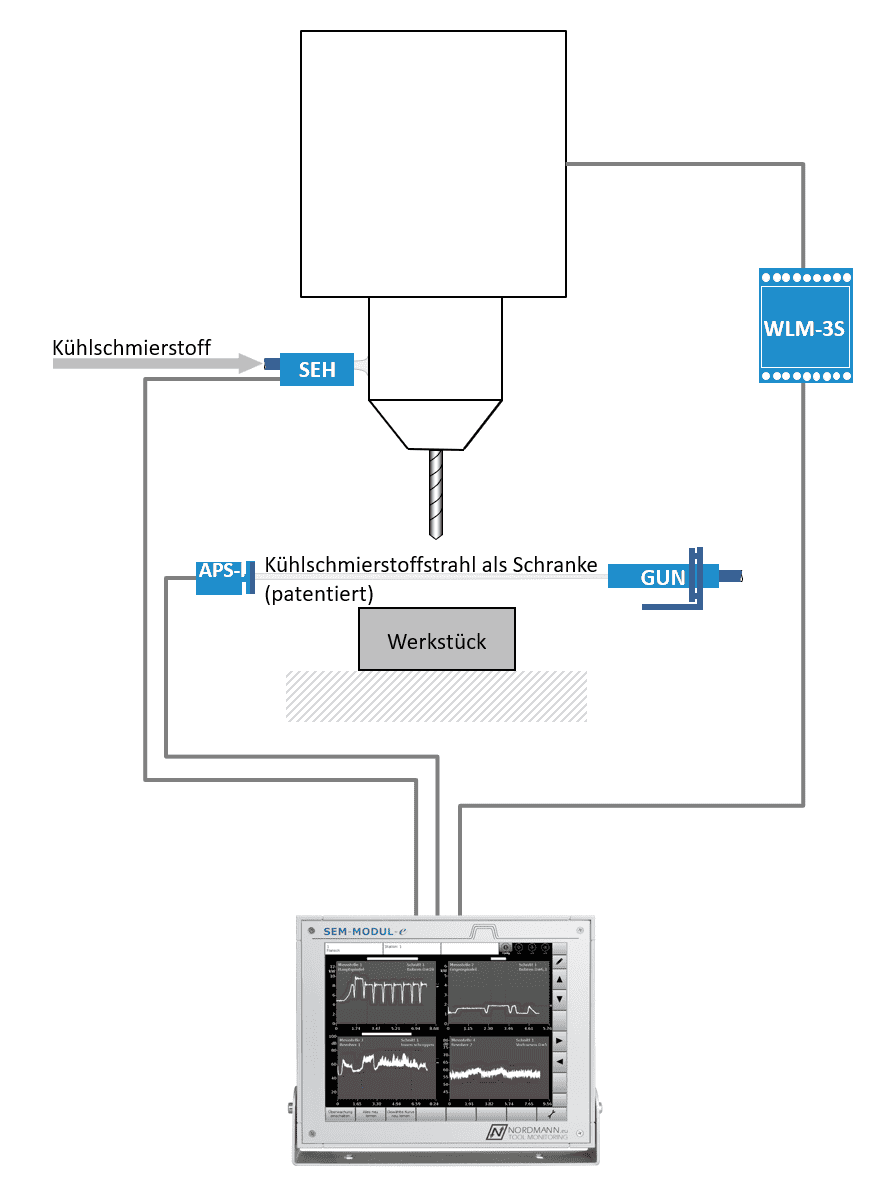

CNC Lathes

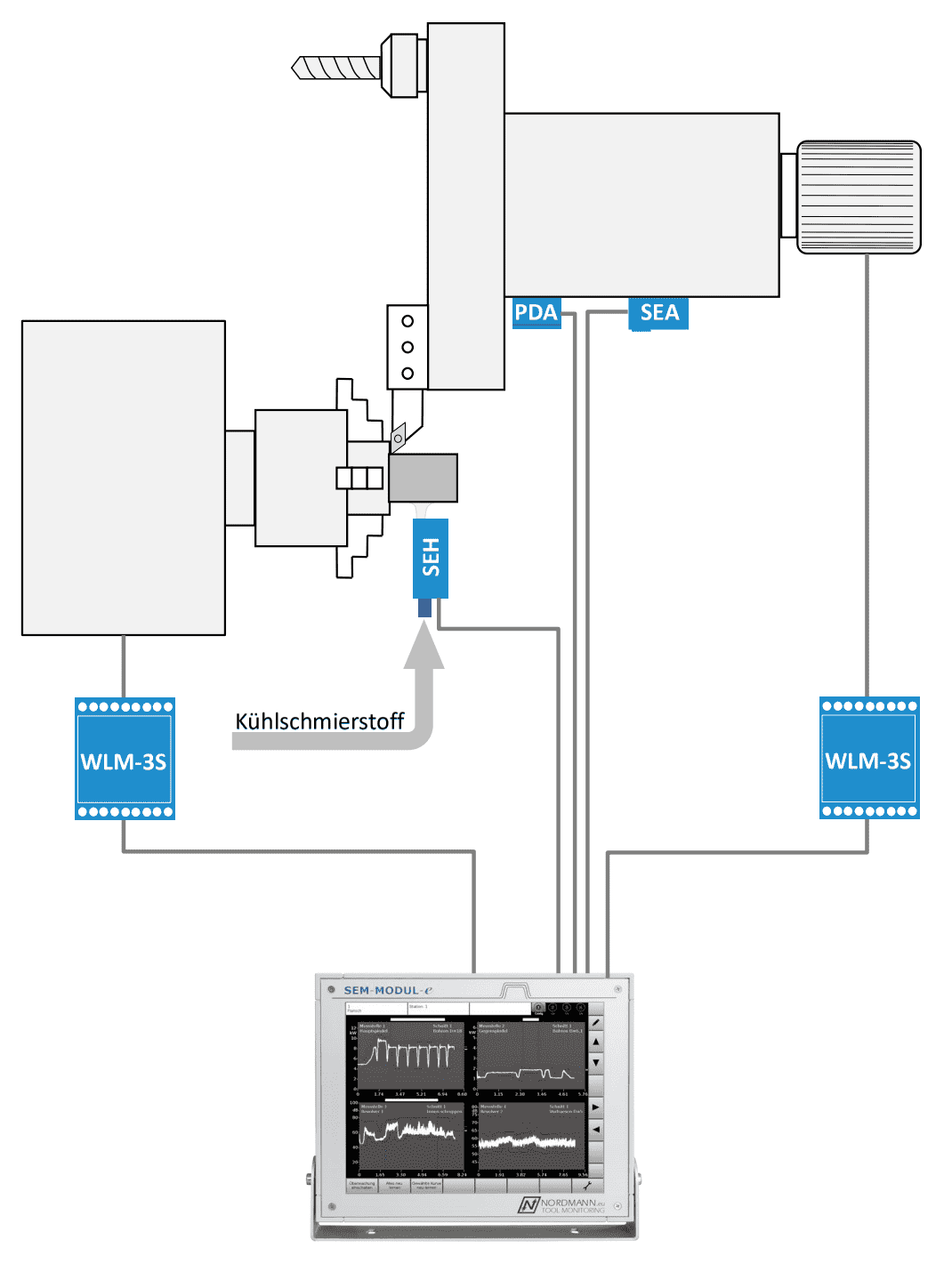

Mögliche Sensorpositionen in CNC-Drehmaschinen

Legend – Sensors used

WLM-3S WLM-3S – Effective power measurement on tool spindles, workpiece spindles and feed axes

SEH SEH – Acoustic emission measurement via a coolant lubricant jet as sound wave conductor (patented)

SEA SEA – Acoustic emission measurement (contact)

PDA PDA – Piezoelectric extensometer for cutting force measurement

Multi‑spindle Automatic Lathes

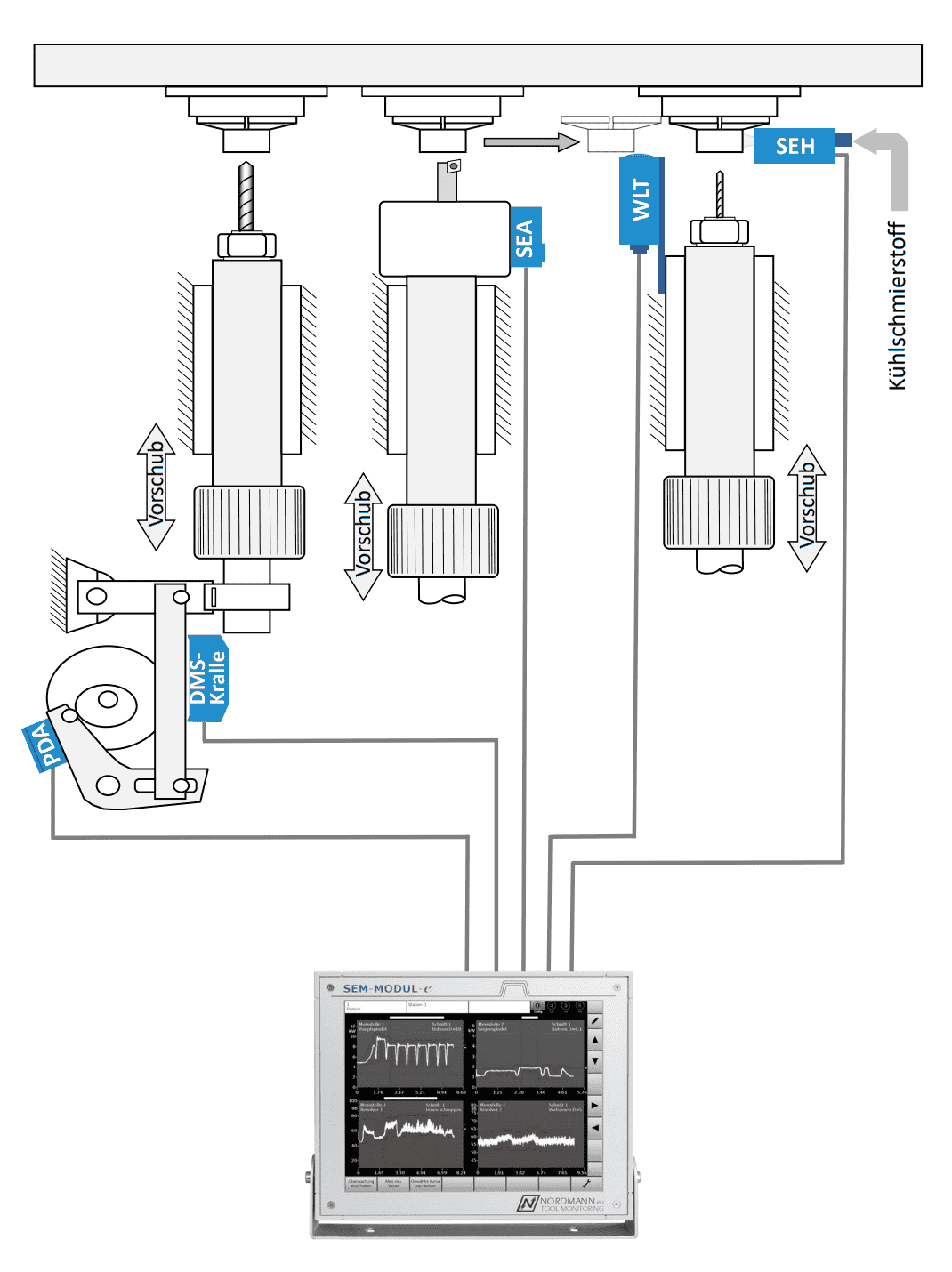

Mögliche Sensorpositionen in Mehrspindeldrehautomaten

Legend – Sensors used

SEH SEH – Acoustic emission measurement via a coolant lubricant jet as sound wave conductor (patented)

SEA-Mini SEA-Mini – Acoustic emission sensor

WLT WLT – Workpiece length measurement

DMS-Kralle DMS-Kralle – Feed force via measurement of the compression of the feed rod

PDA PDA – Piezoelectric extensometer

Rotary Transfer Machines & Transfer Lines

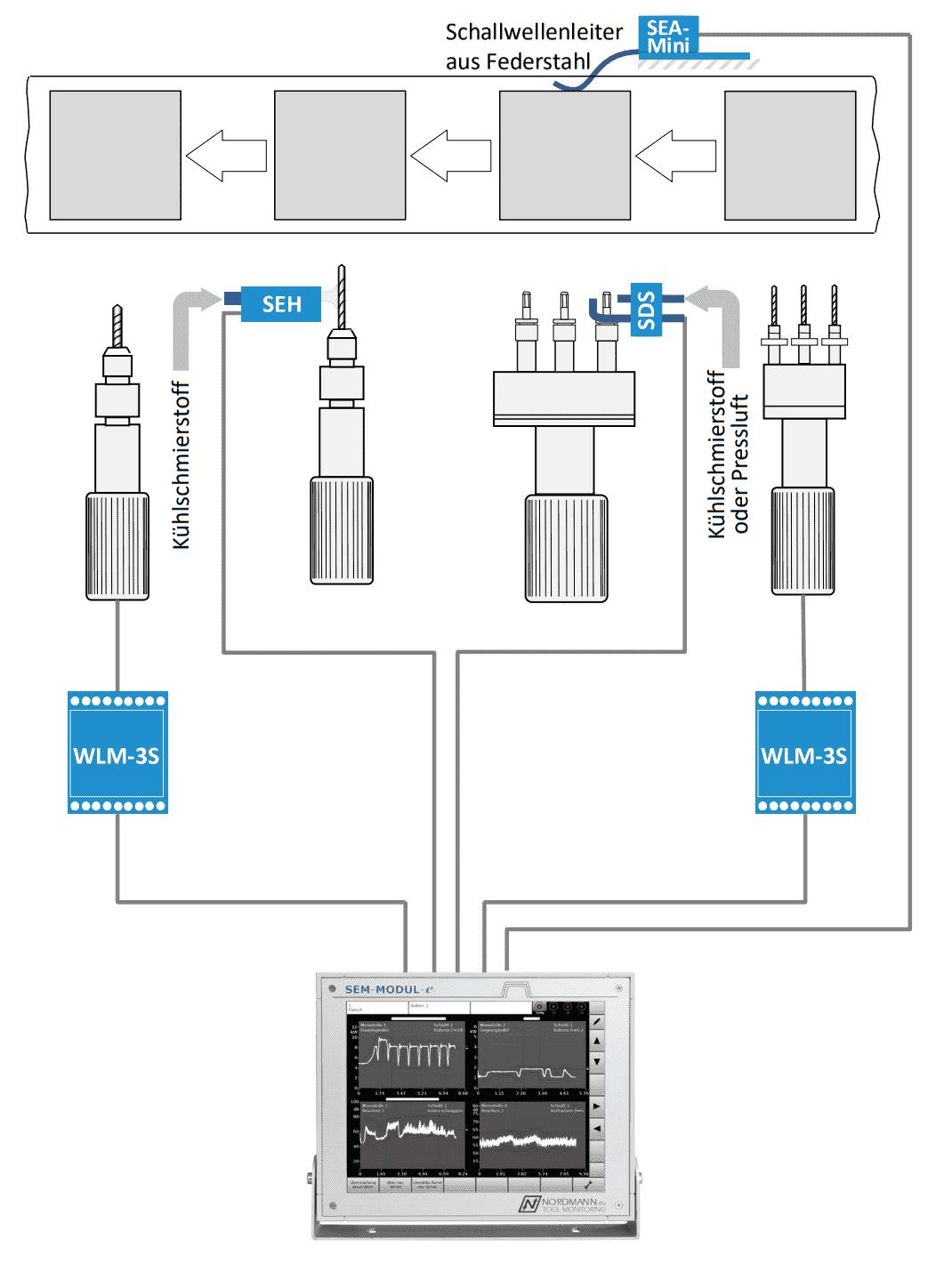

Mögliche Sensorpositionen in Rundtaktautomaten und Transferstraßen

Legend – Sensors used

WLM-3S WLM-3S – Effective power measurement with application of gliding envelope adaptation

SEH SEH – Acoustic emission measurement via a coolant lubricant jet as sound wave conductor (patented)

SDS SDS – Jet barrier with patented measuring principle via coolant lubricant or compressed air

SEA-Mini SEA-Mini – Acoustic emission measurement – patented measuring method with spring steel sound wave conductor

Grinding Machines

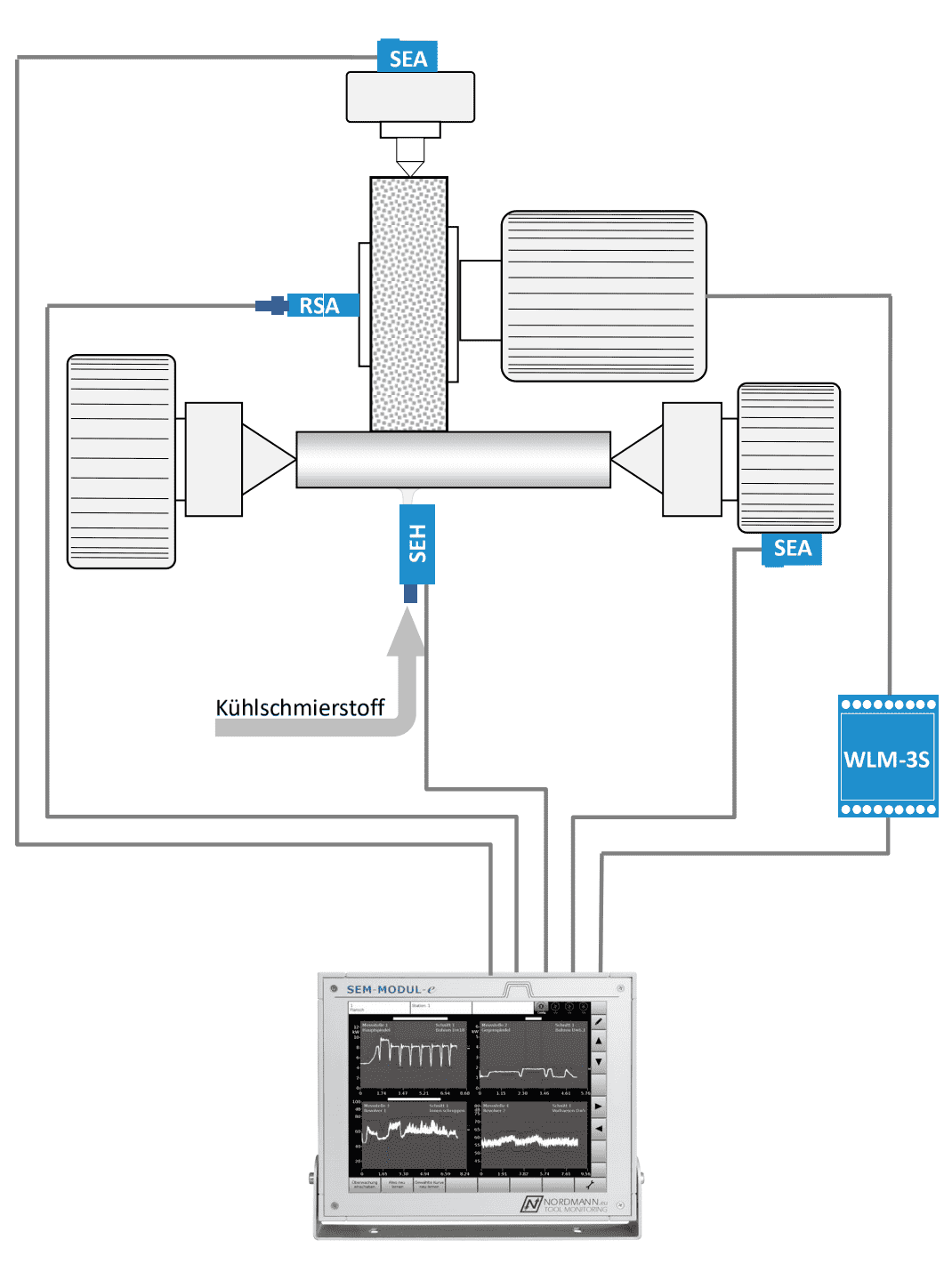

Mögliche Sensorpositionen in Schleifmaschinen

Legend – Sensors used

WLM-3S WLM-3S – Effective power measurement on tool spindles or feed axes

SEH SEH – Acoustic emission measurement via a coolant lubricant jet as sound wave conductor (patented)

SEA-Mini SEA-Mini – Acoustic emission sensor (compact)

RSA RSA – Rotating acoustic emission sensor with non-contact transmission

Legend – Sensor Designations

APS-BDAImpact sensor for jet barriers

APS-L oder -QImpact emission sensor for jet barriers, cable exit longitudinal or transverse

BDA-KralleStrain gauge sensor in claw form (eddy current basis)

BDA-LNon-contact displacement transducer (eddy current)

BDA-QEddy current displacement sensor, transverse measuring

BSANon-contact electromagnetic acoustic emission sensor

DDDDigital Drive Data – digital drive data (effective power, torque) via Profibus, Profinet or Ethernet from modern CNC controllers

DMS-KralleStrain gauge sensor in claw form (strain gauge basis)

EMS-DynElectromagnetic torque sensor

EMS-IndSensor for inductive drill length monitoring

GunGun (jet gun) – for jet barrier with long coolant free jet

HFCSounder for function control of the SEH (flow and bubble content)

INDMeasuring probe with spring-mounted sensor

IND-PneuMeasuring probe with pneumatically extendable sensor

LS2Laser light barrier

LSM-L oder -QAirborne sound microphone, cable exit longitudinal or transverse

PCS-100Tool breakage probe for direct drill breakage monitoring

PDAPiezoelectric extensometer

RSARotating acoustic emission sensor with non-contact transmission

RSA-2Rotating acoustic emission sensor with spatially separated sensor and transmitter (for integration in dressing and grinding spindles)

RSA-RingRotating acoustic emission measuring ring with non-contact transmission

SDS-GabelFork barriers for short coolant or compressed air jets

SEAAcoustic emission sensor

SEA-FederAcoustic emission sensor with spring steel element as wave guide

SEA-MiniAcoustic emission sensor (compact)

SEHAcoustic emission measurement via a coolant lubricant jet

SNF-SEAUltra-low vibration sensor (g-sensor)

WLM-3, WLM-3SThree-phase effective power measurement unit

WLTWorkpiece length sensor

WLT-MiniWorkpiece length sensor (particularly gentle scanning)

XY(+Z)Contact element with integrated acoustic emission sensor
